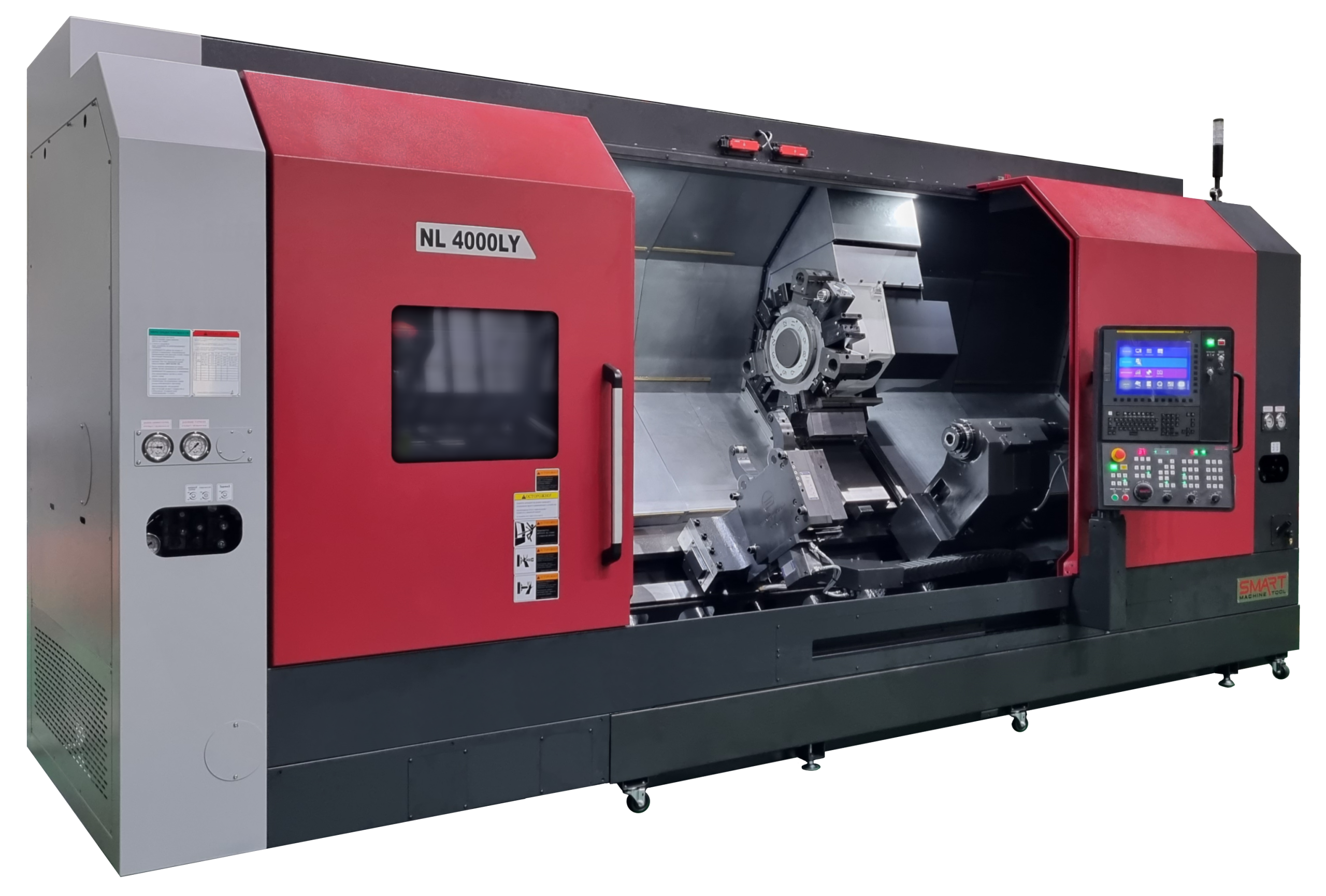

CY Serisi (SMART Marka 8" - 21")
| Özellikler | NL2000ASY (6-6) | NL2000BSY (8-8) | NL2500SY (10-8) | NL3000SY (12-8) | NL2000AY (M:6) | NL2000BY (M:8) | NL2500Y (M:10) | NL3000Y (M:12) | NL3500SY | NL3500BSY | NL3500Y | NL3500XLY | NL3500BY | NL3500BXLY | NL4000LY | NL4000XLY | NL5000LY | NL5000XLY |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Standart Ayna (“) | 6″ | 8″ | 10″ | 12″ | 6″ | 8″ | 10″ | 12″ | 12″ | 15″ | 12″ | 12″ | 15″ | 15″ | 18″ | 18″ | 21″ | 21″ |
| Max. Çubuk İşleme Çapı (mm) | 52 | 68 | 82 | 103 | 52 | 68 | 82 | 103 | 103 | 117.5 | 103 | 103 | 117.5 | 117.5 | 117.5 | 117.5 | 166.5 | 166.5 |
| Max. Çevirme Çapı (mm) | 810 | 810 | 810 | 810 | 810 | 810 | 810 | 810 | 850 | 850 | 850 | 850 | 850 | 850 | 900 | 900 | 900 | 900 |
| Max. Tornalama Çapı (mm) | 411 | 411 | 394 | 394 | 411 | 411 | 394 | 394 | 430 | 430 | 430 | 430 | 430 | 430 | 550 | 550 | 550 | 550 |
| Max. Tornalama Boyu (mm) | 750 | 735 | 713 | 700 | 727 | 712 | 690 | 730 | 1500 | 1470 | 1500 | 3000 | 1470 | 2970 | 2017 | 3017 | 1992 | 2992 |
| Fener Mili Devir Aralığı (rpm) | 6000 | 4500 | 4000 | 2800 | 6000 | 4500 | 4000 | 2800 | 2800 | 2000 | 2800 | 2800 | 2000 | 2000 | 2000 | 2000 | 1500 | 1500 |
| Canlı Takım Devir Aralığı (rpm) | 5000 | 5000 | 5000 | 5000 | 5000 | 5000 | 5000 | 5000 | 5000 | 5000 | 5000 | 5000 | 5000 | 5000 | 4000 | 4000 | ||
| Fener Mili Motor Gücü (kW) | 11/18.5 | 15/18.5 | 18.5/26 | 18.5/22/26 | 11/18.5 | 15/18.5 | 18.5/26 | 18.5/22/26 | 18.5/22/26 | 22/30 | 18.5/22/26 | 18.5/22/26 | 22/30 | 22/30 | 30/45 | 30/45 | 30/45 | 30/45 |
| Kontrol Ünitesi | FANUC 0i-TF PLUS | |||||||||||||||||
