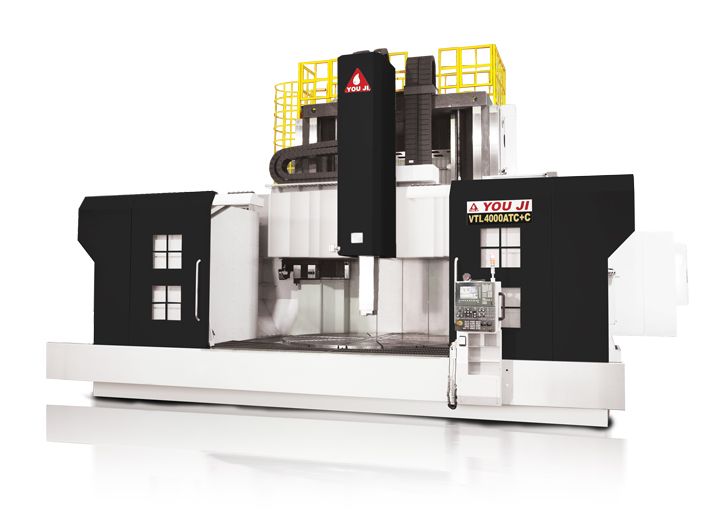

VTL Serisi (YOU JI Marka Ağır Tip)

Özellikler VTL-800 VTL1000 VTL1200 VTL1600 VTL2000 VTL2500 VTL3000 VTL3500 VTL4000 VTL4500
ATC ATC [+C] ATC ATC [+C] ATC ATC-I ATC-II ATC [+C] ATC ATC-I ATC-II ATC [+C] ATC ATC-I ATC-II ATC [+C] ATC ATC-I ATC-II ATC [+C] ATC ATC-I ATC-II ATC [+C] ATC ATC-I ATC-II ATC [+C] ATC ATC-I ATC-II ATC [+C] ATC ATC-I ATC-II ATC [+C]
Standart Ayna(“) 24″ 24″ 63″ 63″ 63″ 63″ 79″ 79″ 79″ 79″
Max. Çevirme Çapı (mm) Ø1000 Ø1000 Ø1350 Ø1350 Ø1350 Ø1350 Ø1350 Ø1350 Ø2000 Ø2000 Ø2000 Ø2000 Ø2500 Ø2500 Ø2500 Ø2500 3000 3000 3000 3000 3400 3400 3400 3400 4100 4100 4100 4100 4600 4600 4600 4600 5100 5100 5100 5100
Max. Tornalama Çapı (mm) Ø1000 Ø1000 Ø1350 Ø1350 Ø1100 Ø1100 Ø1100 Ø1100 Ø1800 Ø1800 Ø1800 Ø2000 Ø2300 Ø2300 Ø2300 Ø2300 2800 2800 2800 2800 3300 3300 3300 3300 3800 3800 3800 3800 4300 4300 4300 4300 4800 4800 4800 4800
Fener Mili-Ayna Yüzeyi Mesafesi (mm) 370-1150 370-1150 1215 1215 1200 1600 1800 1200 1530 2050
Max. Yükleme Ağırlığı (kg) 3.000 3.000 4.000 4.000 5.000 5.000 5.000 5.000 8.000 8.000 8.000 8.000 10.000 10.000 10.000 10.000 15.000 15.000 15.000 15.000 20.000 20.000 20.000 20.000 20.000 20.000 20.000 20.000 30.000 30.000 30.000 30.000 30.000 30.000 30.000 30.000
Fener Mili Devir Aralığı (rpm) 1~135 d/d 135~600 d/d 1~135 d/d 135~600 d/d 1~160 d/d 160~600 d/d 1~160 d/d 160~600 d/d 1~150 d/d           150~350 d/d 1~150 d/d           150~350 d/d 1~150 d/d           150~350 d/d 2~600 d/d 1~70 d/d 70~250 d/d 1~70 d/d 70~250 d/d 1~70 d/d 70~250 d/d 1~70 d/d 70~250 d/d 1-50 d/d 50-200 d/d 1-50 d/d 50-200 d/d 1-50 d/d 50-200 d/d 1-50 d/d 50-200 d/d 1-40 d/d 40-160 d/d 1-40 d/d 40-160 d/d 1-40 d/d 40-160 d/d 1-40 d/d 40-160 d/d 1-40 d/d 40-120 d/d 1-40 d/d 40-120 d/d 1-40 d/d 40-120 d/d 1-40 d/d 40-120 d/d 1-14 d/d 14-60 d/d 1-14 d/d 14-60 d/d 1-14 d/d 14-60 d/d 1-14 d/d 14-60 d/d 1-14 d/d 14-60 d/d 1-14 d/d 14-60 d/d 1-14 d/d 14-60 d/d 1-14 d/d 14-60 d/d 1-14 d/d 14-60 d/d 1-14 d/d 14-60 d/d 1-14 d/d 14-60 d/d 1-14 d/d 14-60 d/d
Canlı Takım Devir Aralığı (rpm) X 1~1200 d/d 1200~2400 d/d X 1~1200 d/d 1200~2400 d/d X X X 2~2400 d/d X X X 1~1200 d/d 1200~2400 d/d X X X 1~1200 d/d 1200~2400 d/d X X X 1~1200 d/d 1200~2400 d/d X X X 1~1200 d/d 1200~2400 d/d X X X 1~1200 d/d 1200~2400 d/d X X 1~1200 d/d 1200~2400 d/d X X X 1~1200 d/d 1200~2400 d/d
Fener Mili Motor Gücü (kW) 18,5 / 22 18,5/ 22 37/45 37/45 37/45 37/45 37/45 37/45 37/45 37/45 37/45 37/45 60/75 60/75 60/75 60/75 60/75 60/75 60/75 60/75 60/75 60/75 60/75 37/45 100/120 100/120 100/120 60/75 100/120 100/120 100/120 60/75 100/120 100/120 100/120 60/75
Canlı Takım Motoru (kW) X 7,5/ 11 X 7,5/ 11 X X X 7,5/ 11 X X X 7,5/ 11 X X X  11/15 X X X  11/15 X X X  11/15 X X X  11/15 X X X 15/18 X X X 15/18
Kontrol Ünitesi FANUC 0i-TF PLUS FANUC 0i-TF PLUS FANUC 0i-TF PLUS FANUC 0i-TF PLUS FANUC 0i-TF PLUS FANUC 0i-TF PLUS FANUC 0i-TF PLUS FANUC 0i-TF PLUS FANUC 0i-TF PLUS FANUC 0i-TF PLUS
